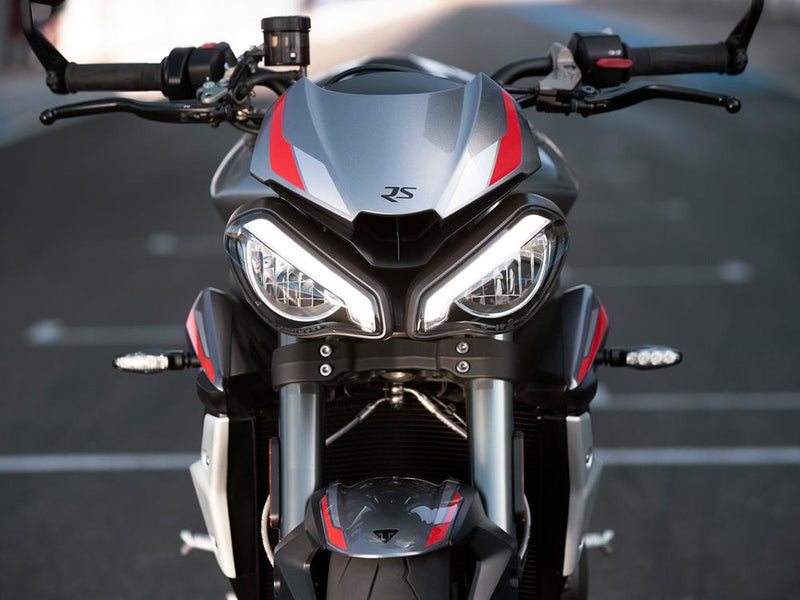

Triumph 2020 Street Triple RS revealed
![Triumph 2020 Street Triple RS](http://mc-motoparts.com/cdn/shop/articles/street-triple-rs-lights.jpg?v=1570499132&width=1200)
Specifications
Engine Type | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder |
Capacity | 765 cc |
Bore Stroke | 77.99 mm / 53.4 mm |
Compression | 12.54:1 |
Max Power | 123 PS / 121.36 BHP (90.5 kW) @11750 rpm |
Max Torque | 79 Nm @ 9350 rpm |
System | Multipoint sequential electronic fuel injection with SAI. Electronic throttle control |
Exhaust | Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer |
Final Drive | X ring chain |
Clutch | Wet, multi-plate, slip-assisted |
Gearbox | 6-speed with Triumph Shift Assist |
Frame | Front – Aluminium beam twin spar Rear – 2 piece high pressure die cast |
Swingarm | Twin-sided, cast aluminium alloy |
Front Wheel | Cast aluminium alloy 5-spoke 17 x 3.5 in |
Rear Wheel | Cast aluminium alloy 5-spoke 17 x 5.5 in |
Front Tyre | 120/70 ZR17 |
Rear Tyre | 180/55 ZR17 |
Front Suspension | Showa 41 mm upside down big piston forks (BPF), Adjustable compression damping, rebound damping and preload adjustment. |
Rear Suspension | Ohlins STX40 fully-adjustable piggyback reservoir RSU |
Front Brake | Twin 310 mm floating discs, Brembo M50 4 – piston radial monobloc calipers |
Rear Brake | Single 220 mm disc, Brembo single piston caliper, switchable ABS |
Width Handlebars | 775 mm |
Height Without Mirrors | 1085 mm |
Seat Height | 840 mm |
Wheelbase | 1405 mm |
Rake | 23.9˚ |
Trail | 100 mm |
Dry Weight | 166 kg |
Tank Capacity | 17.4 Litres |
Images from MCN
Posted on October 08 2019
