First Look on BMW M 1000RR 2021

Posted on September 25 2020

First Look on BMW M 1000RR 2021

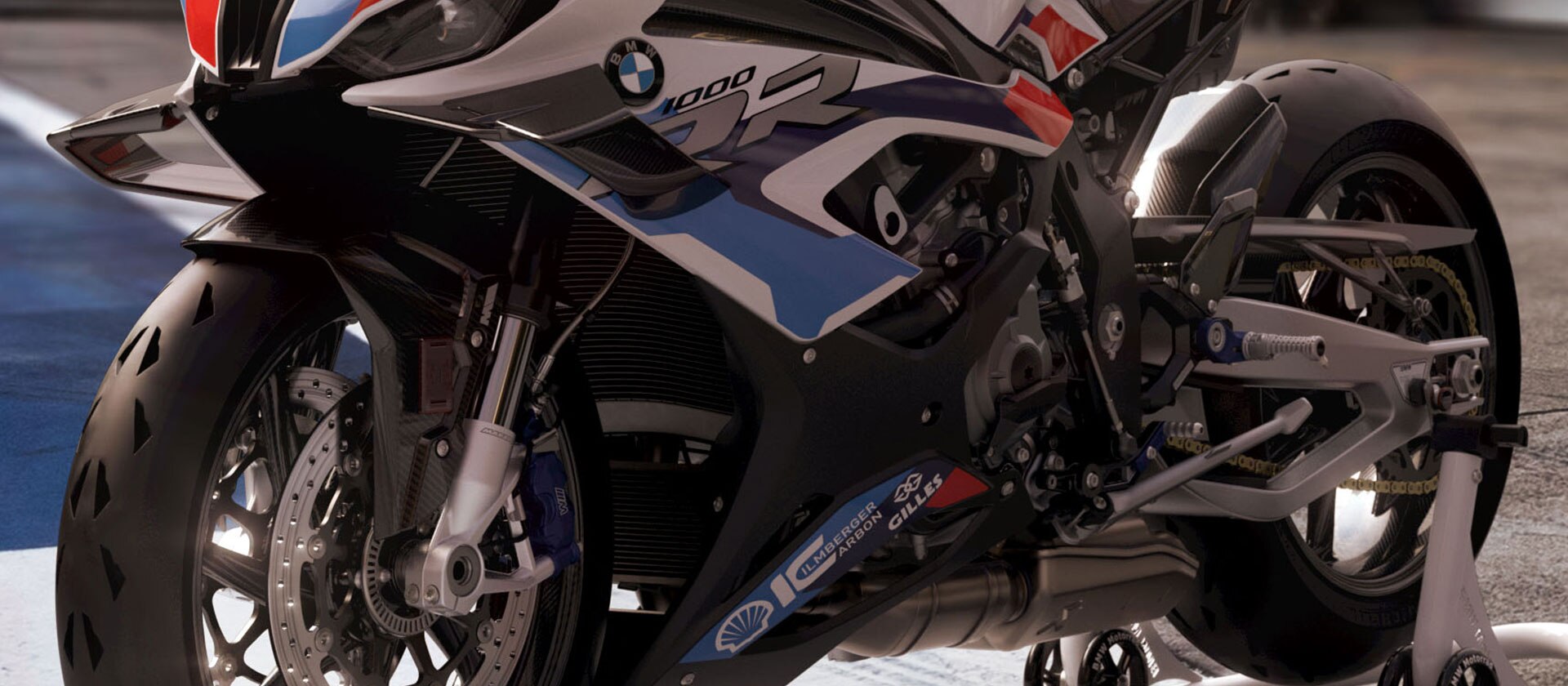

2021 BMW M 1000RR

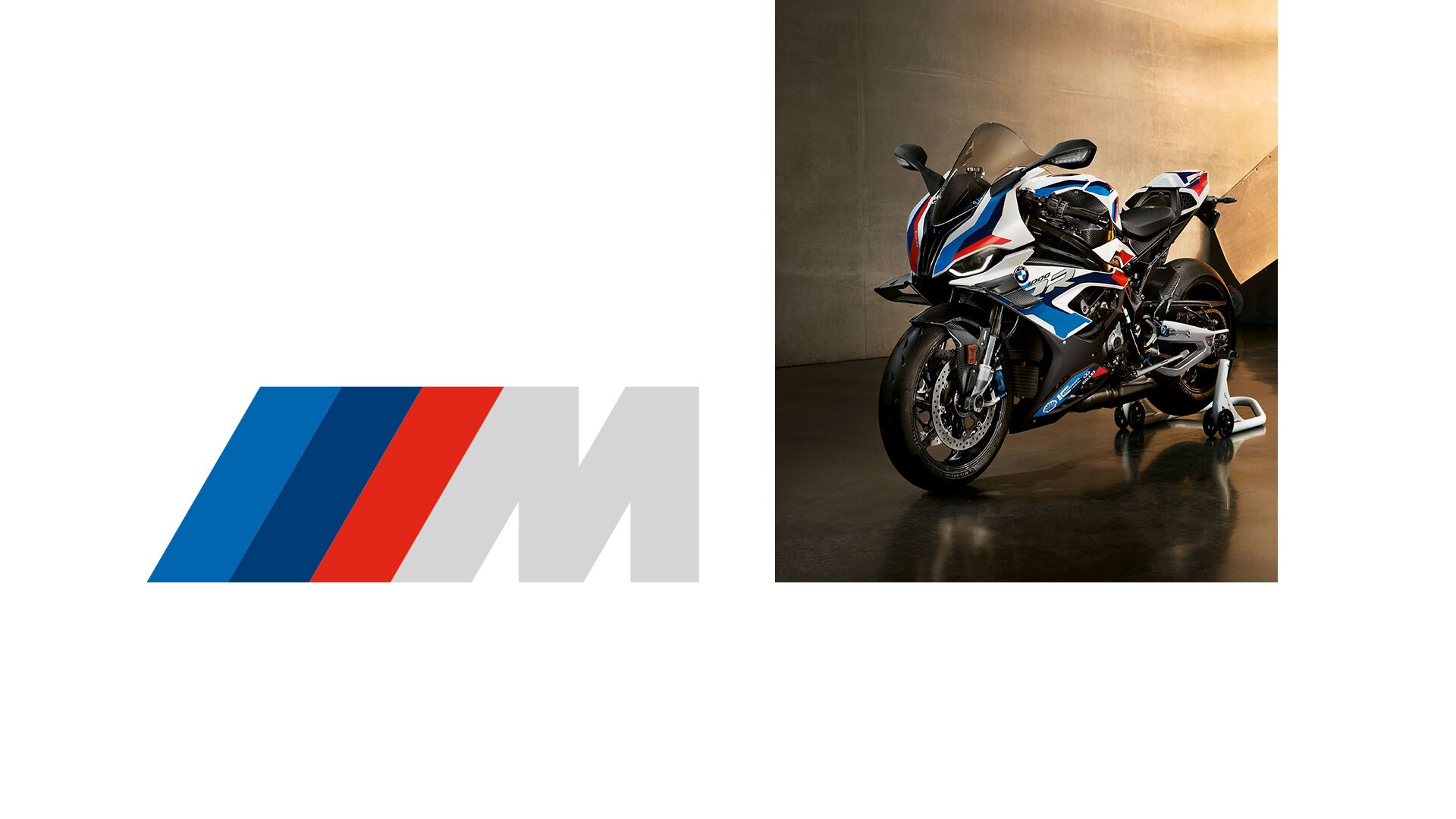

The new M Logo will be on the  bike.








Brake with a blue brake piston

Carbon parts of footrest system

M Winglets on the side of the M 1000RR

Asymmetrical color concept with the basic colours light blue, dark blue and red

Rear carbon wheel

Launch animation with an M logo in the cockpit

Full-titanium exhaust system

Engine

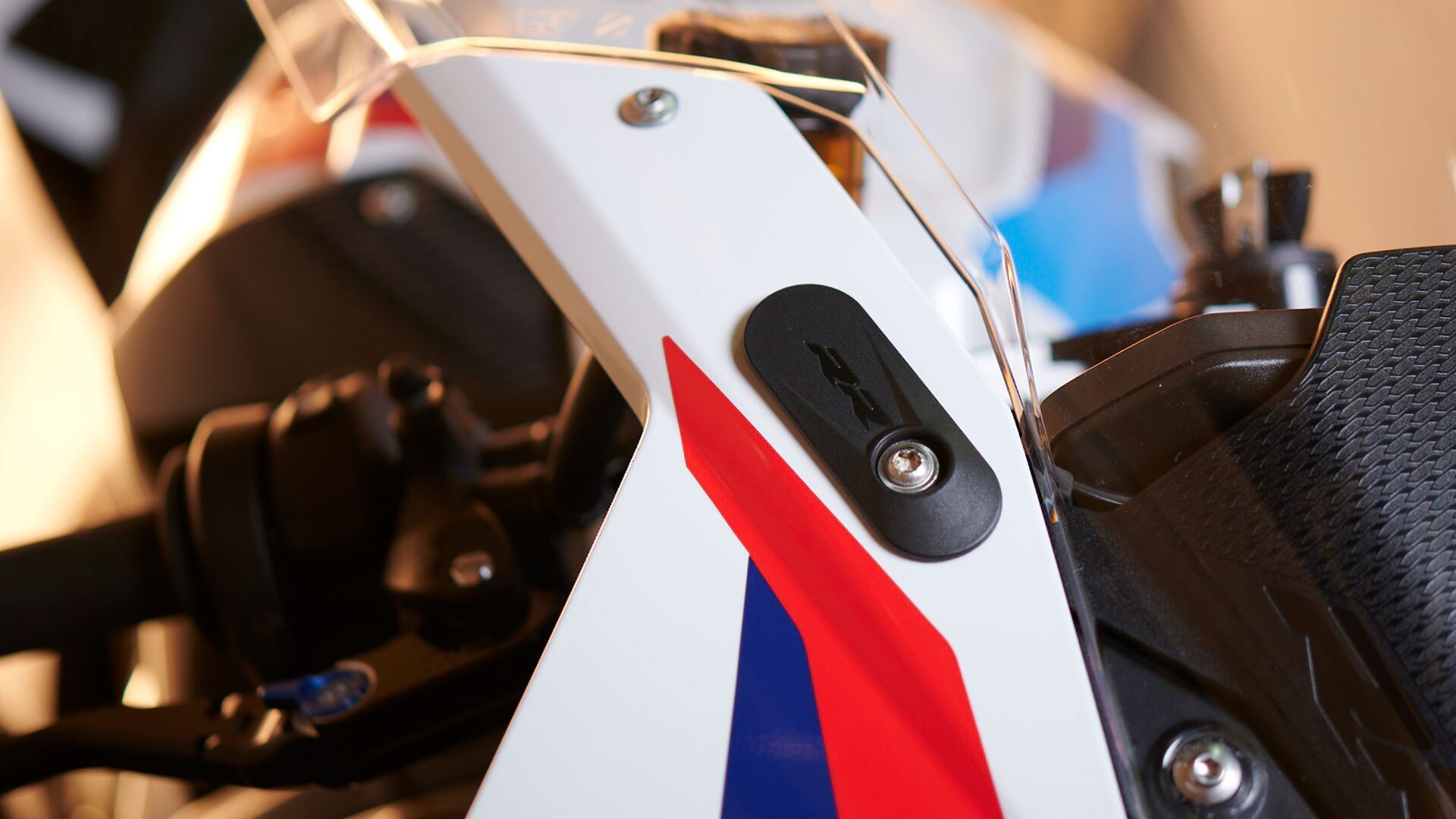

Mirror cover of the Race Cover Kit

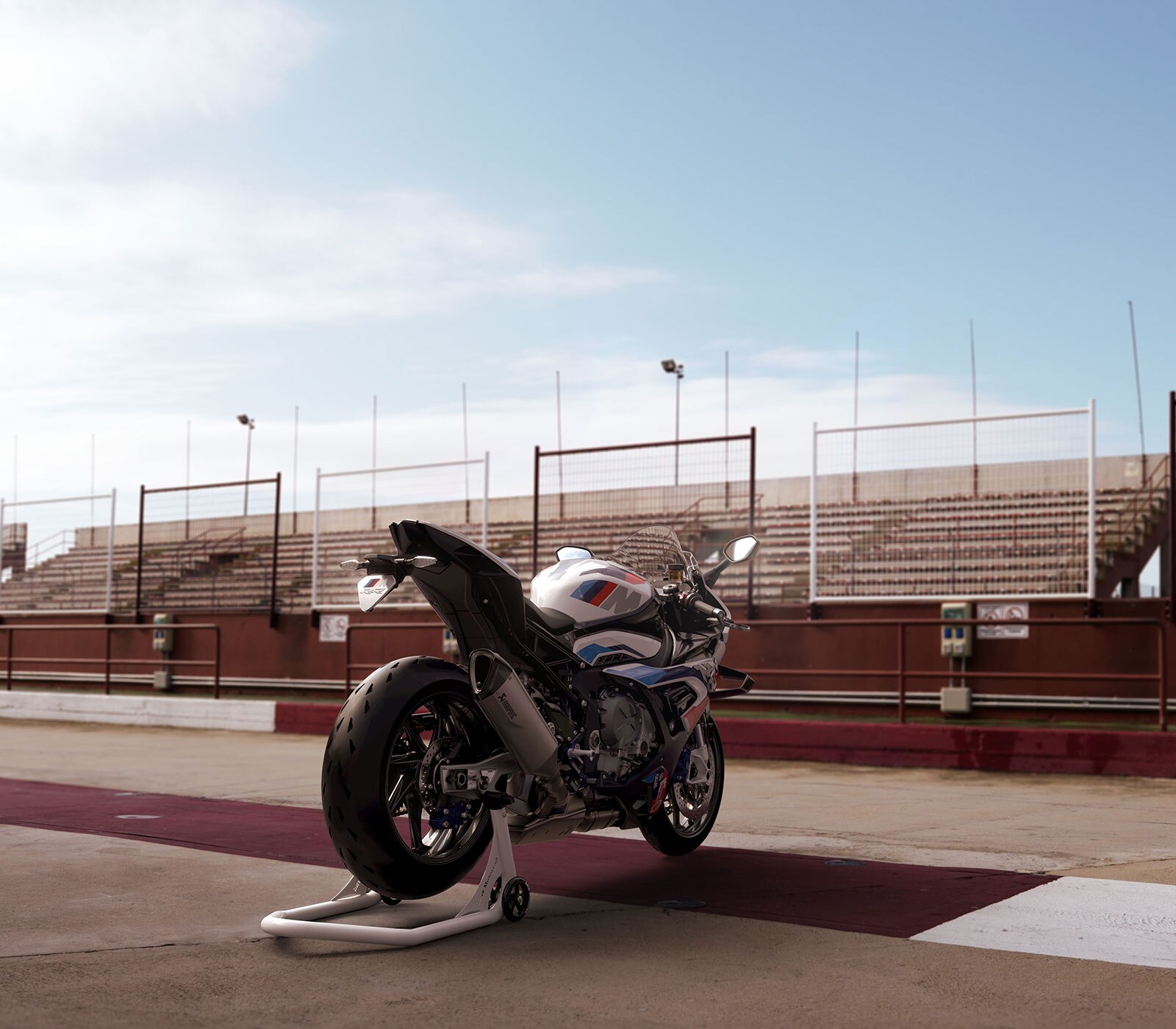

Track Photos








NEW M Winglets




Data & Specification

Engine

Type

Water/oil-cooled 4-cylinder with 4-stroke in-line engine, four titanium valves per cylinder and BMW ShiftCam

Bore / stroke

80 mm x 49.7 mm

Capacity

999 cc

Rated output

205 hp at 13,000 rpm

Max. torque

83 lbs-ft at 11,000 rpm

Compression ratio

13.5 : 1

Mixture control

Electronic injection, variable intake pibe

Emission control

Closed-loop 3-way catalytic converters, EU-5 norm

-------------------------------

Performance / fuel consumption

Maximum speed

189 mph

Fuel consumption per 100 km based on WMTC

6.5 l

CO2 emission based on WMTC

151 g/km

Fuel type

Unleaded super(premium), octane number 95 - 98 (RON)
(knock control; rated output at 98 RON)

-------------------------------

Electrical system

Alternator

450 Watt

M Lightweight Battery

12 V / 5 Ah, Lithium-ion

-------------------------------

Power transmission

Clutch

Multiplate clutch in oil bath, slipper clutch

Gearbox

Constant-mesh 6-speed gearbox with straight cut gears

Drive

Chain 525 17/46

Traction Control

BMW Motorrad DTC

-------------------------------

Chassis / brakes

Frame

Bridge-type frame, cast aluminium, load-bearing engine

Front wheel location / suspension

Upside-down telescopic fork with a diameter of 45 mm, adjustable compression and rebound stage, adjustable preload

Rear wheel location / suspension

Aluminium swing arm, compression and rebound damping adjustable, adjustable preload

Suspension travel, front / rear

4.7“ / 4.6“

Wheelbase

 57.4”

Caster

 3.9”

Steering head angle

66.4°

Wheels

M Carbon Wheels

Rim dimensions, front

3.50 x 17"

Rim dimensions, rear

6.00 x 17"

Tire, front

120/70 ZR 17

Tire, rear

200/55 ZR 17

Brake, front

Twin disc brake, M Brake 4-piston fixed caliper, 5 mm diameter 320 mm

Brake, rear

Single disc brake, 2-piston fixed caliper, diameter 220 mm

ABS

BMW Motorrad Race ABS Pro (part-integral), modes to select

ABS Pro

ABS Pro settings for RAIN, ROAD, DYNAMIC mode, no ABS Pro in RACE and Race Pro 1-3 mode

-------------------------------

Dimensions / weights

Seat height

32.8”

Inner leg curve

72.6”

Usable tank volume

4.4 gallons

Reserve

approx. l 1.1 gallons

Length

81.6”

Height (excl. mirrors)

 47.1”

Width (excl. mirrors)

33.4”

Dry weight

 375 lbs. (M Competition Package 374 lbs.) without battery

Unladen weight, road ready, fully fuelled

423 lbs.  (M Competition Package 423 lbs.)

 1)
Permitted total weight

897 lbs.

Payload (with standard equipment)

467 lbs.




Credits: bmwmotorcycles.com
